Amiga 2000 (SCSI HD)

Part 3/5

After fixing the Amiga 2000 motherboard and the refurbishing the PSU I upgraded the HD from a real SCSI-drive to a SD-Card via a SCSI2SD.

/img/a2000_hd_close_up.jpg
/img/a2000_hd_close_up_back.jpg

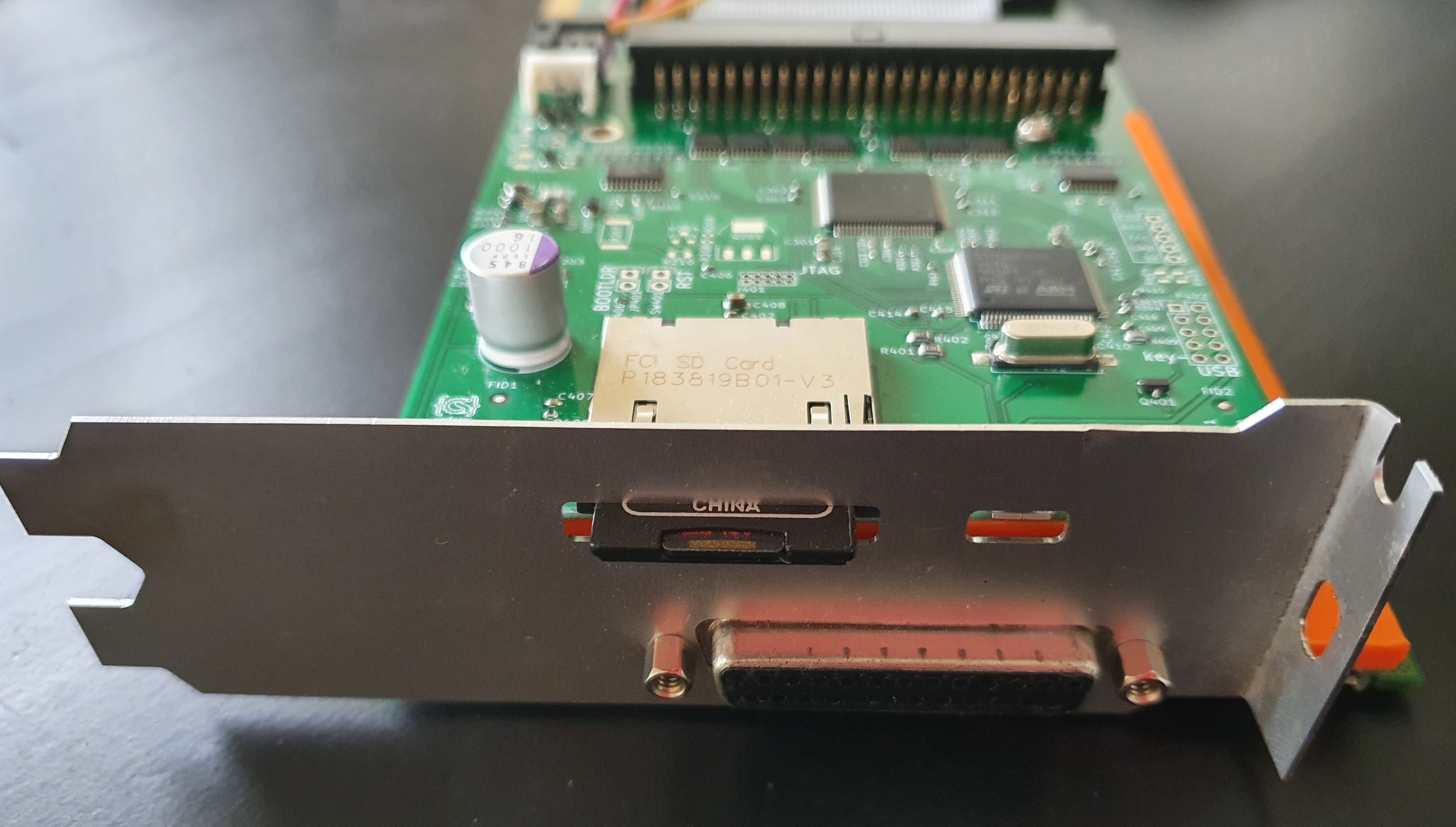

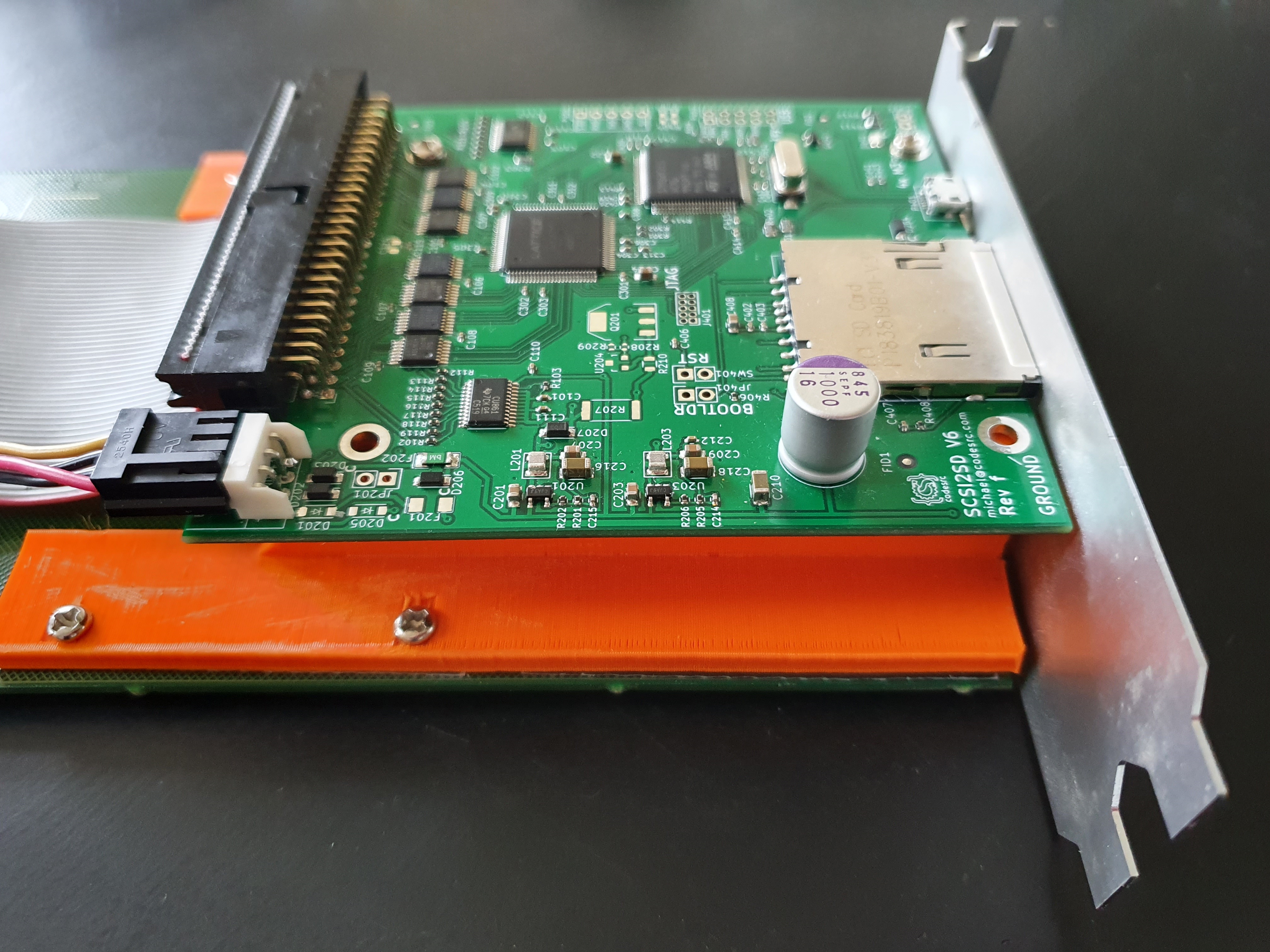

Together with my brother in law and his company Art and Tech VoF we created a 3D printed bracket that makes it possible to attach the SCSI2SD onto the Amiga SCSI controller card where the HD used to be. We also created a new slot plate that make it possible to access the SD-card and USB port from the back of the Amiga.

/img/a2000_hd_board.jpg

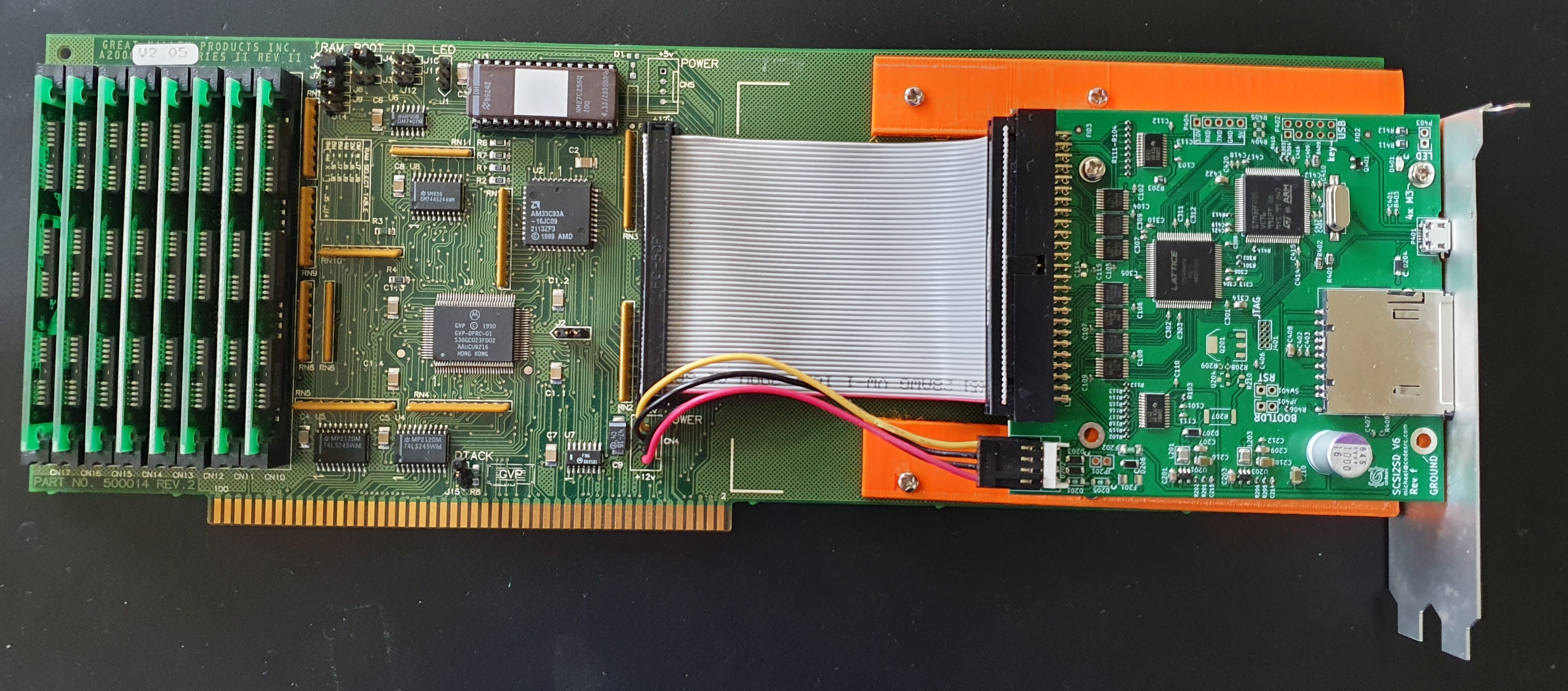

Since the SCSI controller card, a GVP (Great Valley Products): 2000 HC+8, has 8 1mb SIMM slots, I used that to upgrade the memory of the Amiga to a total of 9MB (1MB onboard and 8MB on the SCSI controller).

/img/a2000_hd_build_in.jpg

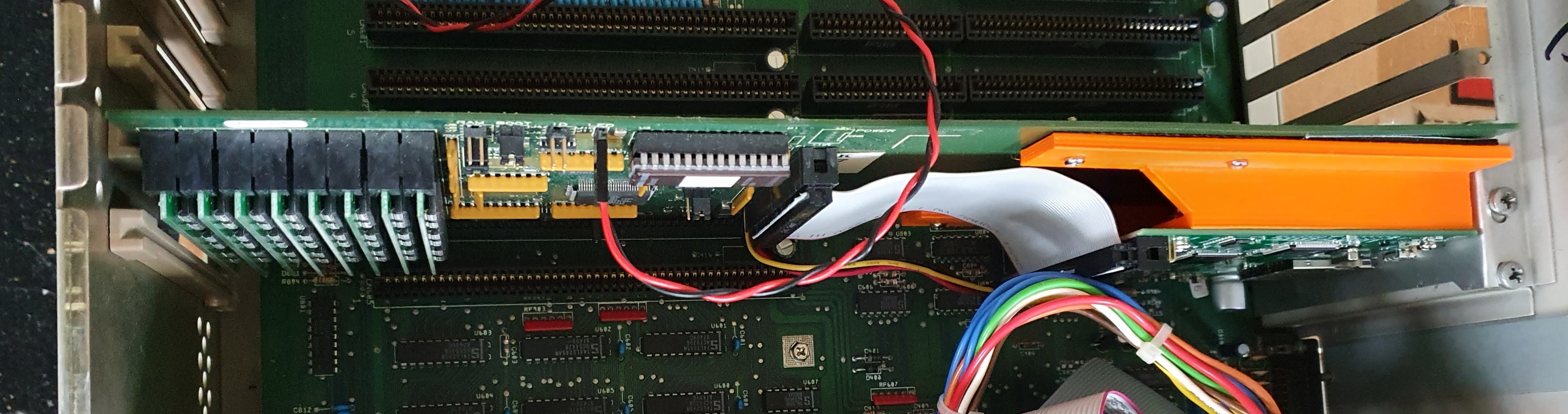

With the SCSI2SD build in the next thing will be to install the GoTek floppy emulator but that will be something for a next part.
